THE YACHT

DUN DIGGIN is a beautiful vessel as the photographs will show, and it has been carefully restored to the point where the new owner needs to be involved. There are decisions going forward regarding the final finishes. The present owner believes it is time to allow some input from the new owner.

Everything has been carefully attended to from stem to stern; from the bow thrusters; to the stabilizers; to the propellers and shafts. All the thru-hulls are replaced; and, upgrades such as: underwater lights, have been added.

The intention was to recommission this vessel for another generation of owner.

Yacht Specifications

“Dun Diggin”

Hailing port: Marina del Rey, California

Length: 28.35M/93'00"

Builder: NORDLUND/MCQUEEN

Built/Refit: 1988

Guests: 8

VESSEL NAME: Dun Diggin

Marine Architect: Ed Monk Jr.

BUILDER: Nordlund / McQueen 1988

MODEL: 93’

HIN # ND19329CL

Doc # 928253

LOA: 92’7”

BEAM: 21’11”

DRAFT: 7’

PROPULSION: Twin Caterpillar

MODEL: 3412

Port: 6OMO2857

Starboard: 6OMO2864

TRANSMISSIONS: ZF

FUEL: (2) Tanks – total 3,000 gallons

WATER: 600 gallons

GENERATORS: (3) Northern lights (2) 30KW (1) 9KW

BOW THRUSTER: Electric Side Power

STABILIZERS: NIAID Hydraulic

In addition to the pilothouse control central, there are (2) wing stations;
(1) cockpit station all with separate bow thruster controls
A Large fishing cockpit, with a built-in bait tank,
Fishing gear and tackle storage, sink, BBQ grill.
Classic hidden bar lift in-saloon that goes up and down with the push of a button.
Fully air-conditioned (currently being serviced)
Wabasto heating system throughout (currently being serviced)
Washer Dryer
4 full staterooms
Captains quarters, and
crew quarters all with in-suite head and shower.
Gourmet Galley

Notable upgrades and services performed:

Repair & restore rudder packing, and clean pillow block bearings.
Remove and replace propellers and shafts to repair props, repack stuffing boxes and replace cutlass bearings.
Straighten & Dynamic balance propellers. (5 blade 40 X 38)
Bow thruster tunnel renewed New Sidepower Bow Thruster installed with separate battery bank and charger.
(13) Thru-hulls replaced bronze.
All hose and fittings to thru hulls replaced.
Bonding wire was added to all underwater valves as needed.
Naiad / Stabilizers removed serviced and repaired
Removed and replace (4) raw water sea strainers and service main engine strainers.
(6) underwater lights installed
New bottom paint Oct 2020 strip/repair, fair, apply new epoxy barrier coat and bottom paint.
Old generators removed New generators installed
(3) Northern lights
(2) 30KW
(1) 9KW
Overhead hatch replaced in the pilot house.
Canvas covers for all exterior wood, and windows.
Whalers serviced and refurbished.
All batteries, house, and starting were replaced.
The swim step renewed.
The window in the pilothouse was replaced.
Canvas covers for whalers.
(2) canister 6 man Life Rafts repacked
(2) new 40-gallon hot water heaters

Sea Trial

Dun Diggin sea Trial

Last December 28, 2021, was a successful sea trial on Dun Diggin at Santa Monica Bay, CA.

The conditions on Santa Monica Bay were a little windy, with a steady flow of five-foot average waves coming in from offshore.

Once outside the breakwater, we headed directly into the seas.

Dun Diggin handled it very well and the stabilizers proved priceless especially

when we turned around to head back to port. Returning we reached 18.5 knots, which is exciting on a 93' yacht.

The main test was for the starboard transmission.

Prior to the sea trial on that day, we successfully ran all (3) generators, the main engines, air compressors for the air handling shifting, and hydraulics for steering and stabilizers.

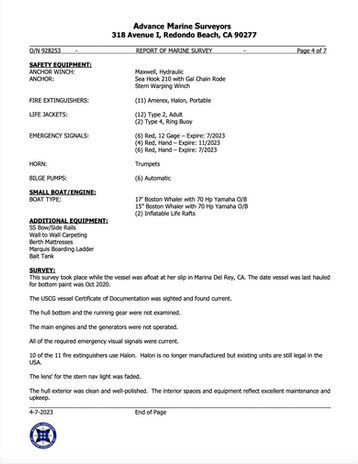

DUN DIGGIN SURVEY REPORT
